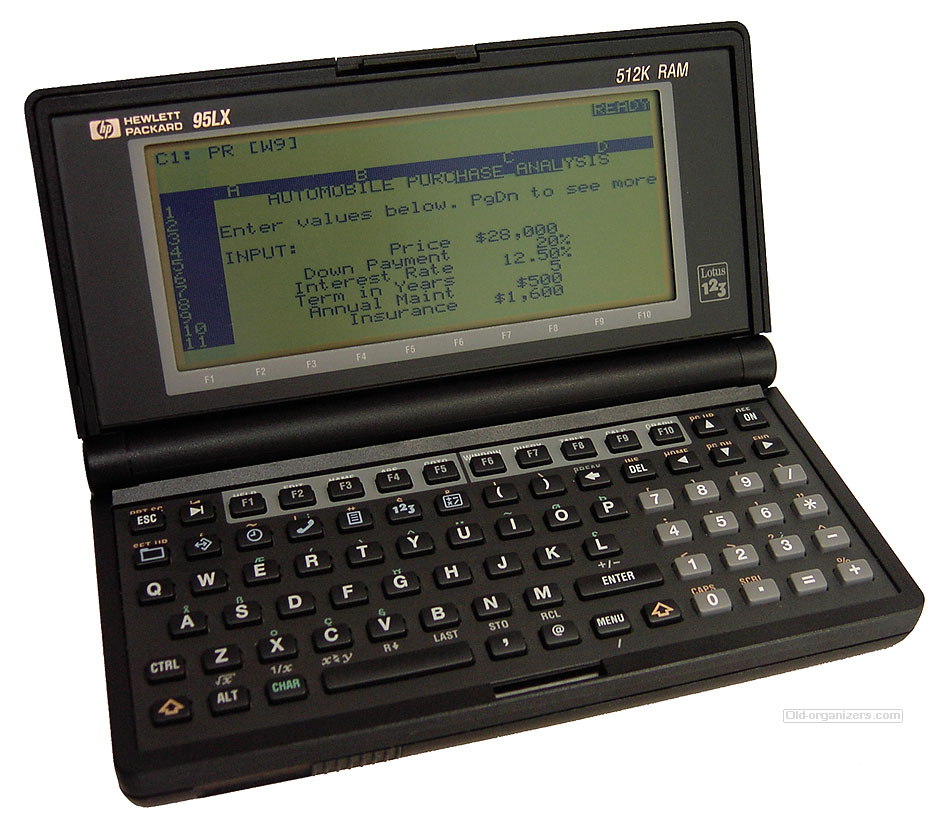

Running Lotus 123

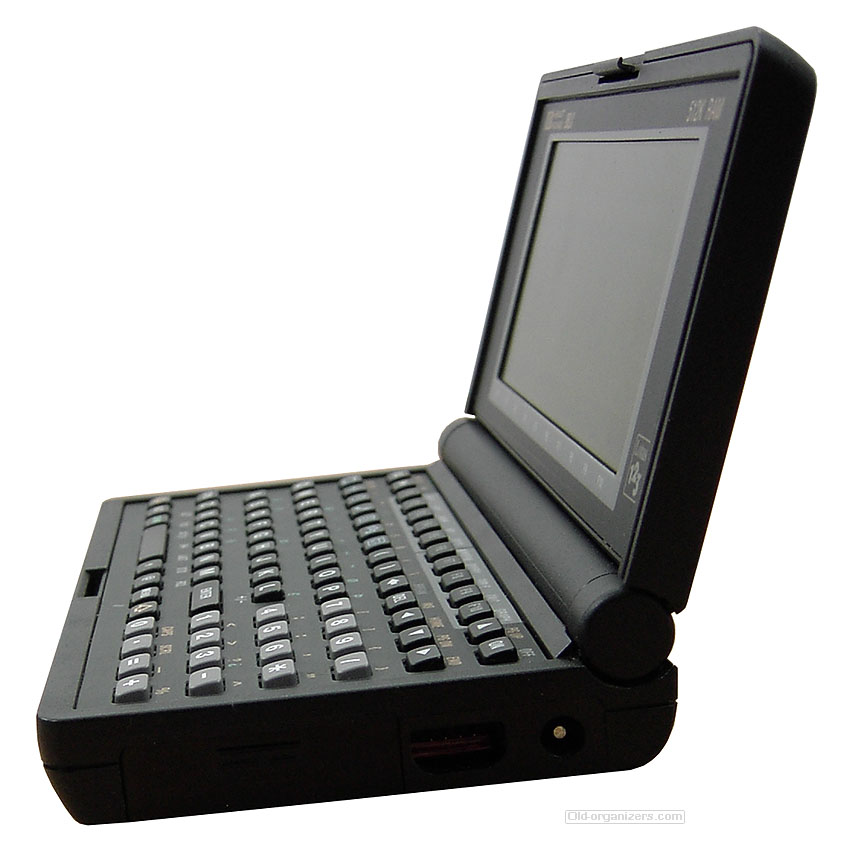

Side view

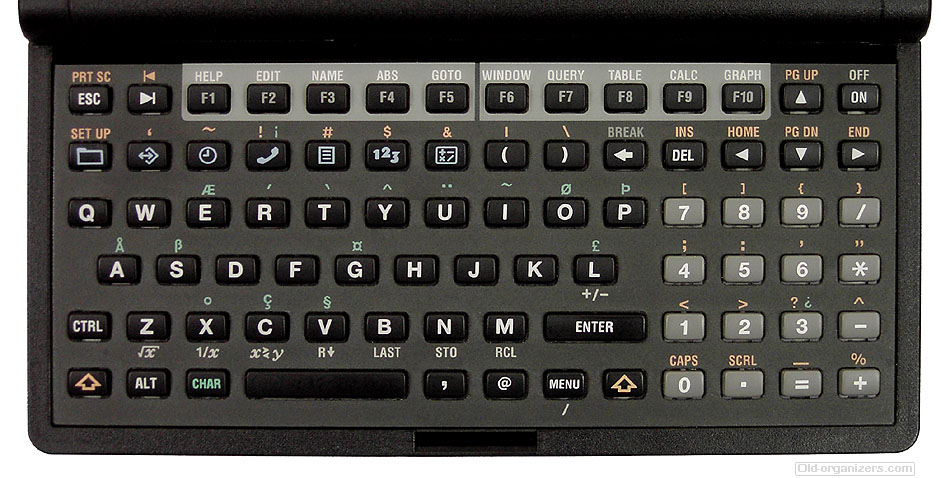

Keyboard close-up

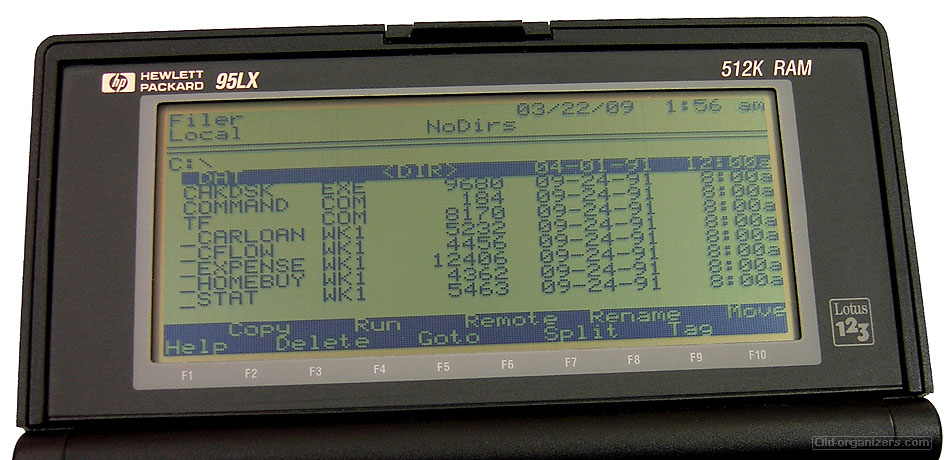

Display close-up

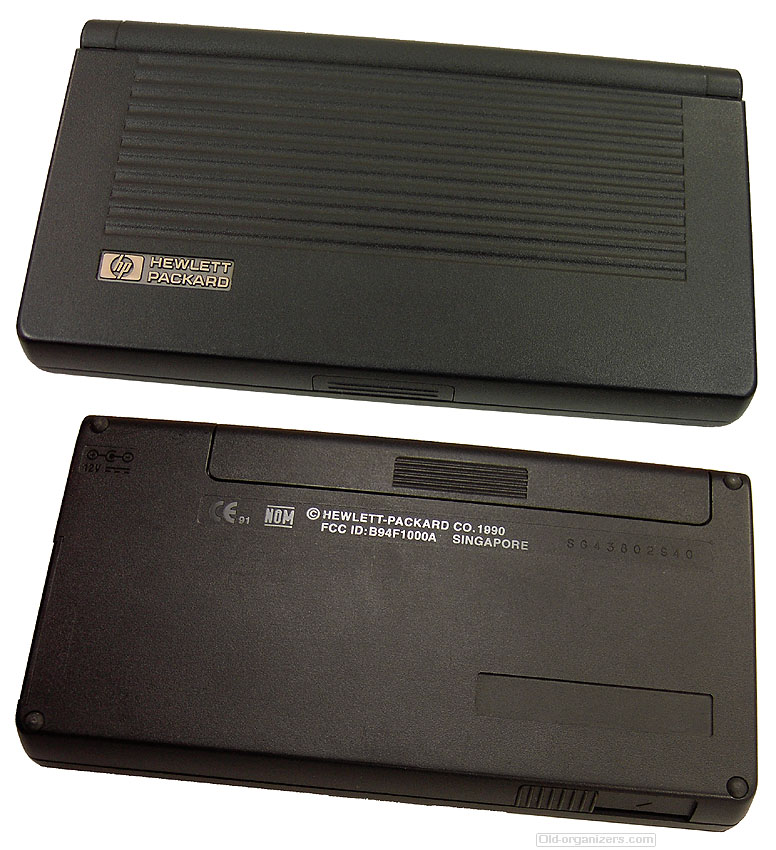

Top and back sides

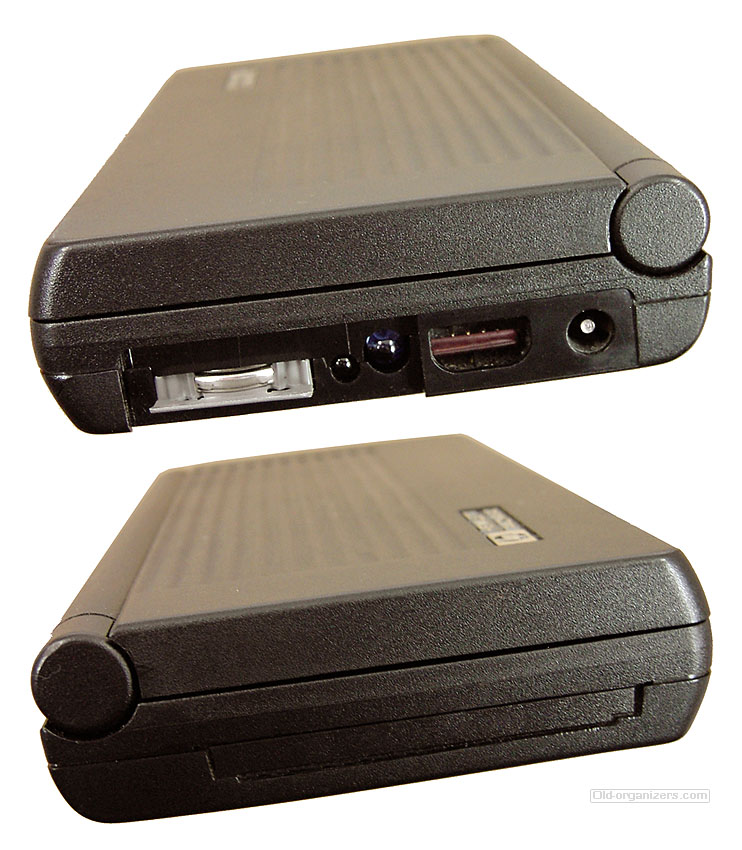

Right side: Backup battery housing, Infrared Leds, Serial connector, Power supply jack.
Left side: PCMCIA card trap door

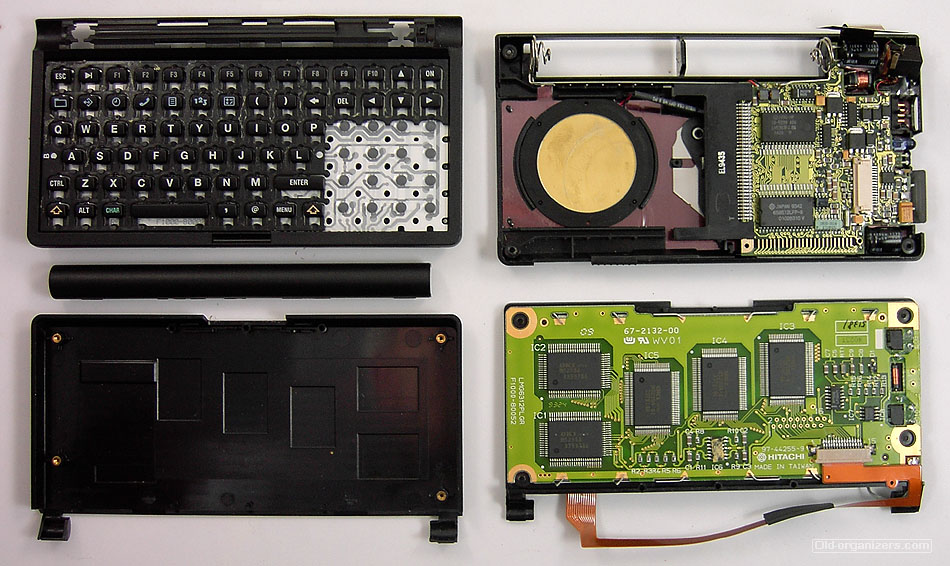

In pieces

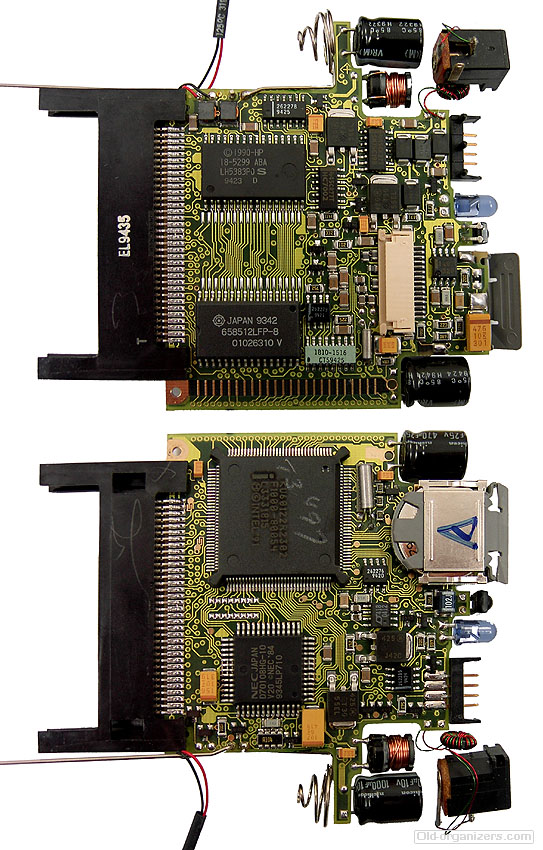

Both sides of the electronic card.
Top side: Program ROM chip (top) and 512 KB memory chip. Provision is made for a second 512 KB RAM chip
Bottom side: NEC V20 processor and Intel hardware controller

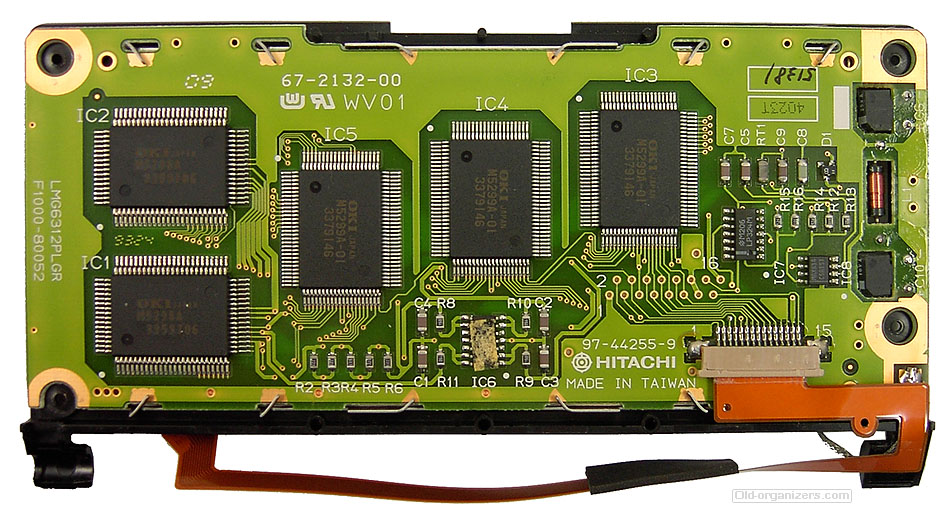

Back side of the display card made by Hitachi with Oki display and controller chips.

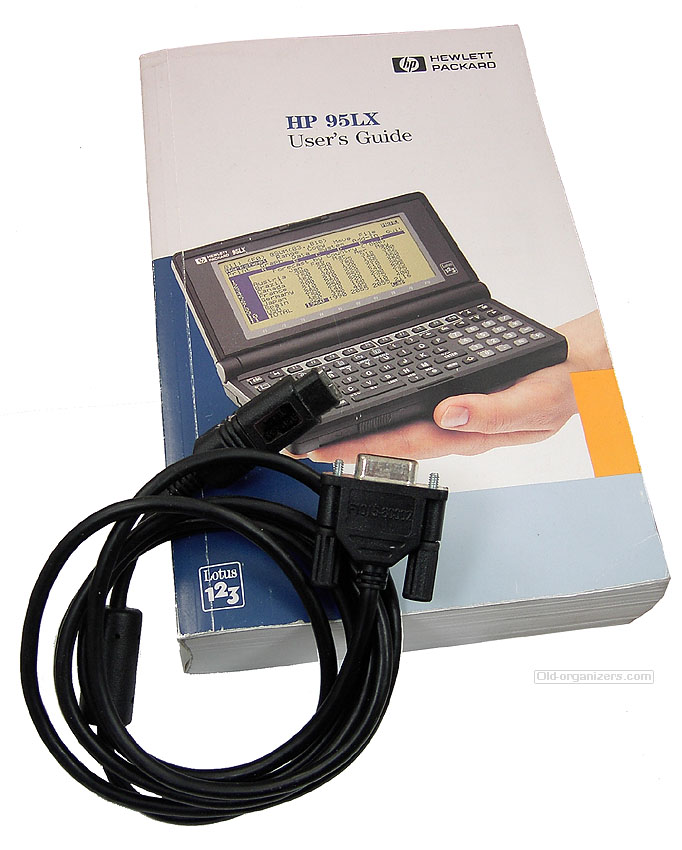

The imposing user's manual, about 800 page, and the serial cable.
